Unsupervised dan Reinforcement Learning

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
import matplotlib.patheffects as pe
import seaborn as sns

from sklearn.datasets import load_iris, make_blobs, make_moons
from sklearn.preprocessing import StandardScaler
from sklearn.cluster import KMeans, AgglomerativeClustering, DBSCAN
from sklearn.decomposition import PCA
from sklearn.manifold import TSNE
from sklearn.metrics import silhouette_score
from scipy.cluster.hierarchy import dendrogram, linkage

plt.rcParams['figure.figsize'] = (10, 5)
plt.rcParams['font.size'] = 12
sns.set_style("whitegrid")

import warnings
warnings.filterwarnings('ignore')

print("Semua library berhasil diimpor!")

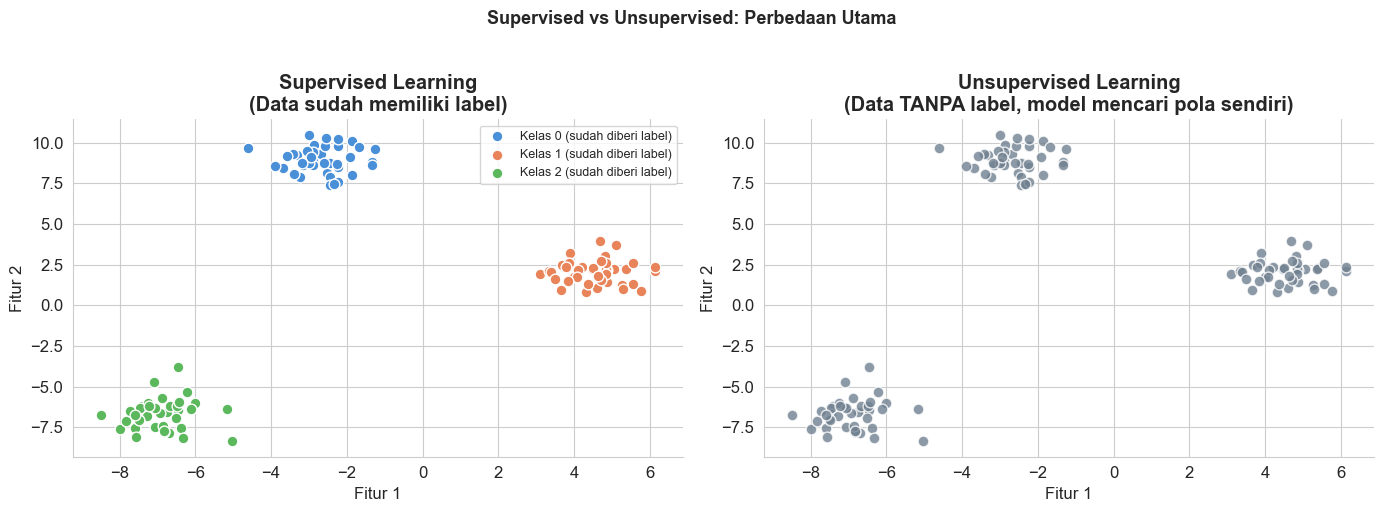

# Visualisasi perbedaan Supervised vs Unsupervised
fig, axes = plt.subplots(1, 2, figsize=(14, 5))

np.random.seed(42)
X, y = make_blobs(n_samples=120, centers=3, cluster_std=0.8, random_state=42)

# Panel kiri: Supervised (ada label)
palette_sup = {0: '#4A90D9', 1: '#E8835A', 2: '#5CB85C'}
for cls in [0, 1, 2]:
    mask = y == cls
    axes[0].scatter(X[mask, 0], X[mask, 1],
                    color=palette_sup[cls], s=60, edgecolors='white',
                    label=f'Kelas {cls} (sudah diberi label)')
axes[0].set_title('Supervised Learning\n(Data sudah memiliki label)', fontweight='bold')
axes[0].legend(fontsize=9)
axes[0].set_xlabel('Fitur 1'); axes[0].set_ylabel('Fitur 2')

# Panel kanan: Unsupervised (tanpa label)
axes[1].scatter(X[:, 0], X[:, 1], color='slategray', s=60,
                edgecolors='white', alpha=0.8)
axes[1].set_title('Unsupervised Learning\n(Data TANPA label, model mencari pola sendiri)',
                  fontweight='bold')
axes[1].set_xlabel('Fitur 1'); axes[1].set_ylabel('Fitur 2')

for ax in axes:
    ax.spines[['top', 'right']].set_visible(False)

plt.suptitle('Supervised vs Unsupervised: Perbedaan Utama',
             fontsize=13, fontweight='bold', y=1.02)
plt.tight_layout()
plt.show()

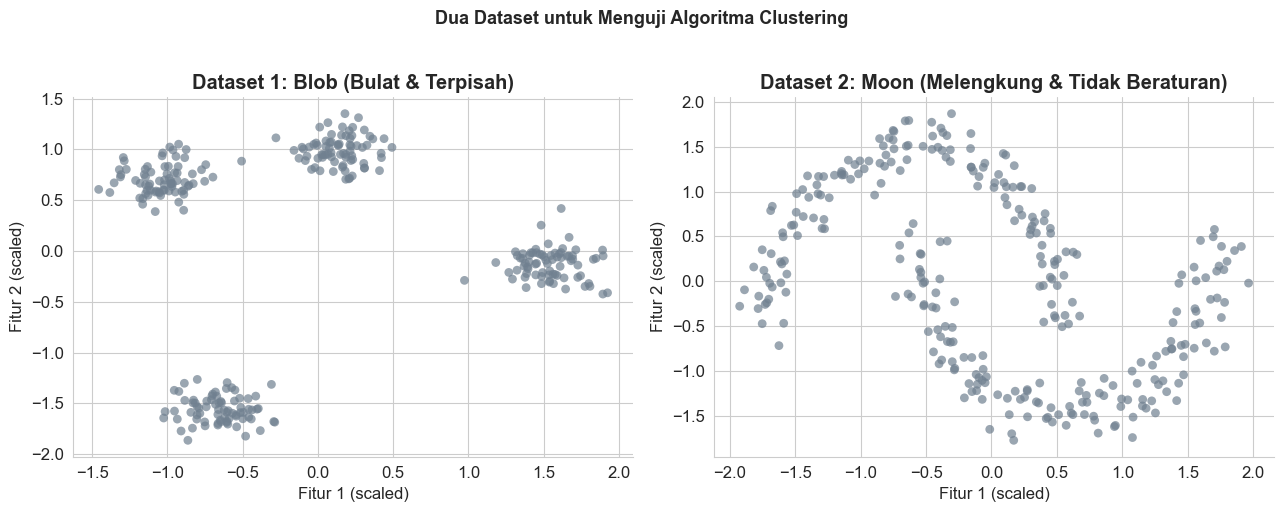

# Membuat dua dataset untuk perbandingan
np.random.seed(42)

# Dataset 1: Blob (bulat, terpisah jelas)
X_blob, y_blob = make_blobs(n_samples=300, centers=4,
                             cluster_std=0.9, random_state=42)

# Dataset 2: Bulan (melengkung, tidak beraturan)
X_moon, y_moon = make_moons(n_samples=300, noise=0.08, random_state=42)

# Normalisasi
scaler = StandardScaler()
X_blob_s = scaler.fit_transform(X_blob)
X_moon_s = StandardScaler().fit_transform(X_moon)

fig, axes = plt.subplots(1, 2, figsize=(13, 5))

axes[0].scatter(X_blob_s[:, 0], X_blob_s[:, 1],
                color='slategray', s=40, alpha=0.7, edgecolors='none')
axes[0].set_title('Dataset 1: Blob (Bulat & Terpisah)', fontweight='bold')

axes[1].scatter(X_moon_s[:, 0], X_moon_s[:, 1],
                color='slategray', s=40, alpha=0.7, edgecolors='none')
axes[1].set_title('Dataset 2: Moon (Melengkung & Tidak Beraturan)', fontweight='bold')

for ax in axes:
    ax.set_xlabel('Fitur 1 (scaled)')
    ax.set_ylabel('Fitur 2 (scaled)')
    ax.spines[['top', 'right']].set_visible(False)

plt.suptitle('Dua Dataset untuk Menguji Algoritma Clustering',
             fontsize=13, fontweight='bold', y=1.02)
plt.tight_layout()
plt.show()

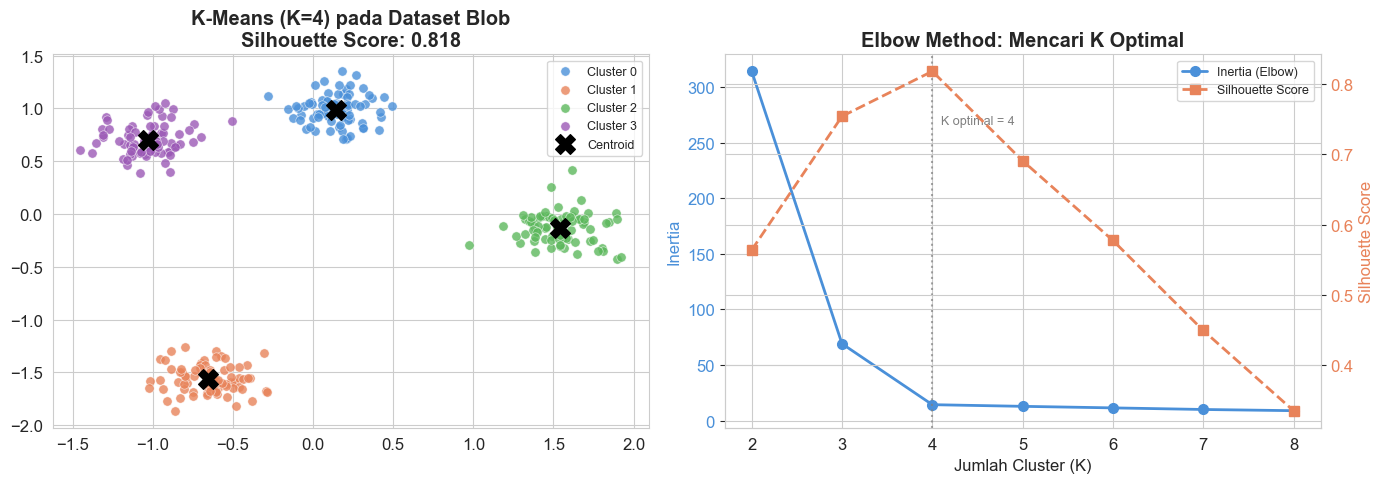

# K-Means pada Dataset Blob
kmeans = KMeans(n_clusters=4, random_state=42, n_init=10)
labels_km = kmeans.fit_predict(X_blob_s)
centroids = kmeans.cluster_centers_

palette = ['#4A90D9', '#E8835A', '#5CB85C', '#9B59B6']

fig, axes = plt.subplots(1, 2, figsize=(14, 5))

# Hasil clustering
for k in range(4):
    mask = labels_km == k
    axes[0].scatter(X_blob_s[mask, 0], X_blob_s[mask, 1],
                    color=palette[k], s=45, alpha=0.8,
                    edgecolors='white', linewidth=0.4, label=f'Cluster {k}')
axes[0].scatter(centroids[:, 0], centroids[:, 1],
                color='black', marker='X', s=200, zorder=5, label='Centroid')
axes[0].set_title(f'K-Means (K=4) pada Dataset Blob\nSilhouette Score: {silhouette_score(X_blob_s, labels_km):.3f}',
                  fontweight='bold')
axes[0].legend(fontsize=9)

# Mencari K optimal: Elbow Method
inertias = []
sil_scores = []
K_range = range(2, 9)
for k in K_range:
    km = KMeans(n_clusters=k, random_state=42, n_init=10)
    km.fit(X_blob_s)
    inertias.append(km.inertia_)
    sil_scores.append(silhouette_score(X_blob_s, km.labels_))

ax2 = axes[1]
color1, color2 = '#4A90D9', '#E8835A'
ax2.plot(K_range, inertias, 'o-', color=color1, linewidth=2, markersize=7, label='Inertia (Elbow)')
ax2.set_xlabel('Jumlah Cluster (K)')
ax2.set_ylabel('Inertia', color=color1)
ax2.tick_params(axis='y', labelcolor=color1)

ax2b = ax2.twinx()
ax2b.plot(K_range, sil_scores, 's--', color=color2, linewidth=2, markersize=7, label='Silhouette Score')
ax2b.set_ylabel('Silhouette Score', color=color2)
ax2b.tick_params(axis='y', labelcolor=color2)

ax2.set_title('Elbow Method: Mencari K Optimal', fontweight='bold')
ax2.axvline(4, color='gray', linestyle=':', linewidth=1.5, alpha=0.7)
ax2.text(4.1, max(inertias)*0.85, 'K optimal = 4', color='gray', fontsize=9)
ax2.spines[['top']].set_visible(False)

lines1, labels1 = ax2.get_legend_handles_labels()
lines2, labels2 = ax2b.get_legend_handles_labels()
ax2.legend(lines1 + lines2, labels1 + labels2, fontsize=9)

plt.tight_layout()
plt.show()

print(f"K-Means Blob - Silhouette Score: {silhouette_score(X_blob_s, labels_km):.4f}")
print("(Silhouette Score mendekati 1.0 = cluster sangat terpisah dengan baik)")

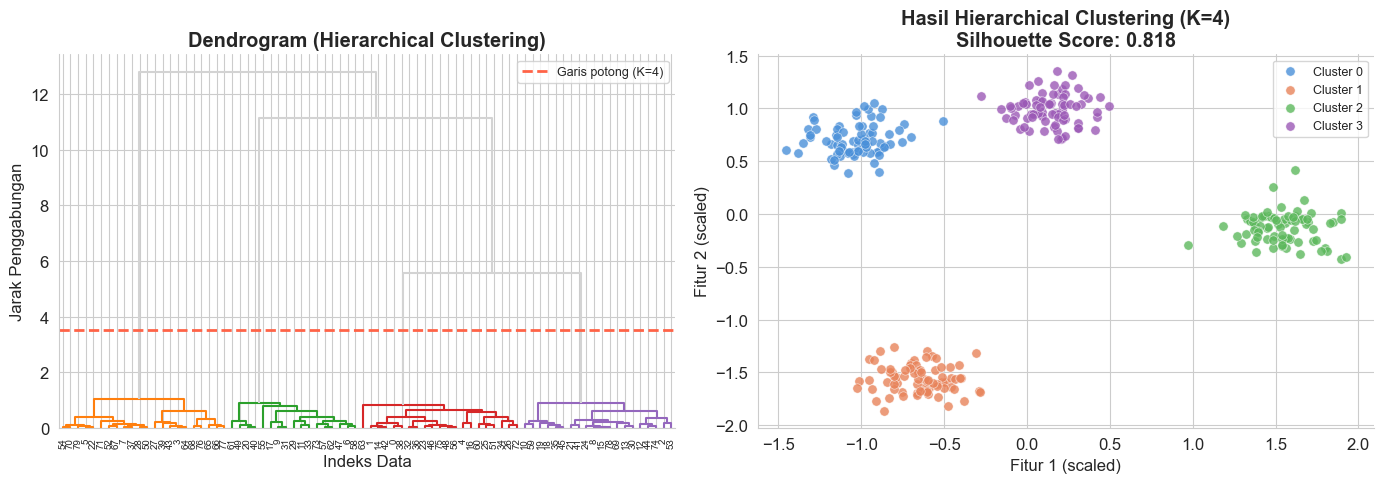

# Hierarchical Clustering
fig, axes = plt.subplots(1, 2, figsize=(14, 5))

# Dendrogram
Z = linkage(X_blob_s[:80], method='ward')  # Pakai subset agar dendrogram tidak terlalu padat
dendrogram(Z, ax=axes[0], leaf_rotation=90, leaf_font_size=7,
           color_threshold=3.5,
           above_threshold_color='lightgray')
axes[0].axhline(y=3.5, color='tomato', linestyle='--', linewidth=2, label='Garis potong (K=4)')
axes[0].set_title('Dendrogram (Hierarchical Clustering)', fontweight='bold')
axes[0].set_xlabel('Indeks Data')
axes[0].set_ylabel('Jarak Penggabungan')
axes[0].legend(fontsize=9)
axes[0].spines[['top', 'right']].set_visible(False)

# Hasil clustering
hier = AgglomerativeClustering(n_clusters=4, linkage='ward')
labels_hier = hier.fit_predict(X_blob_s)

for k in range(4):
    mask = labels_hier == k
    axes[1].scatter(X_blob_s[mask, 0], X_blob_s[mask, 1],
                    color=palette[k], s=45, alpha=0.8,
                    edgecolors='white', linewidth=0.4, label=f'Cluster {k}')
sil_hier = silhouette_score(X_blob_s, labels_hier)
axes[1].set_title(f'Hasil Hierarchical Clustering (K=4)\nSilhouette Score: {sil_hier:.3f}',
                  fontweight='bold')
axes[1].legend(fontsize=9)
axes[1].set_xlabel('Fitur 1 (scaled)')
axes[1].set_ylabel('Fitur 2 (scaled)')
axes[1].spines[['top', 'right']].set_visible(False)

plt.tight_layout()
plt.show()

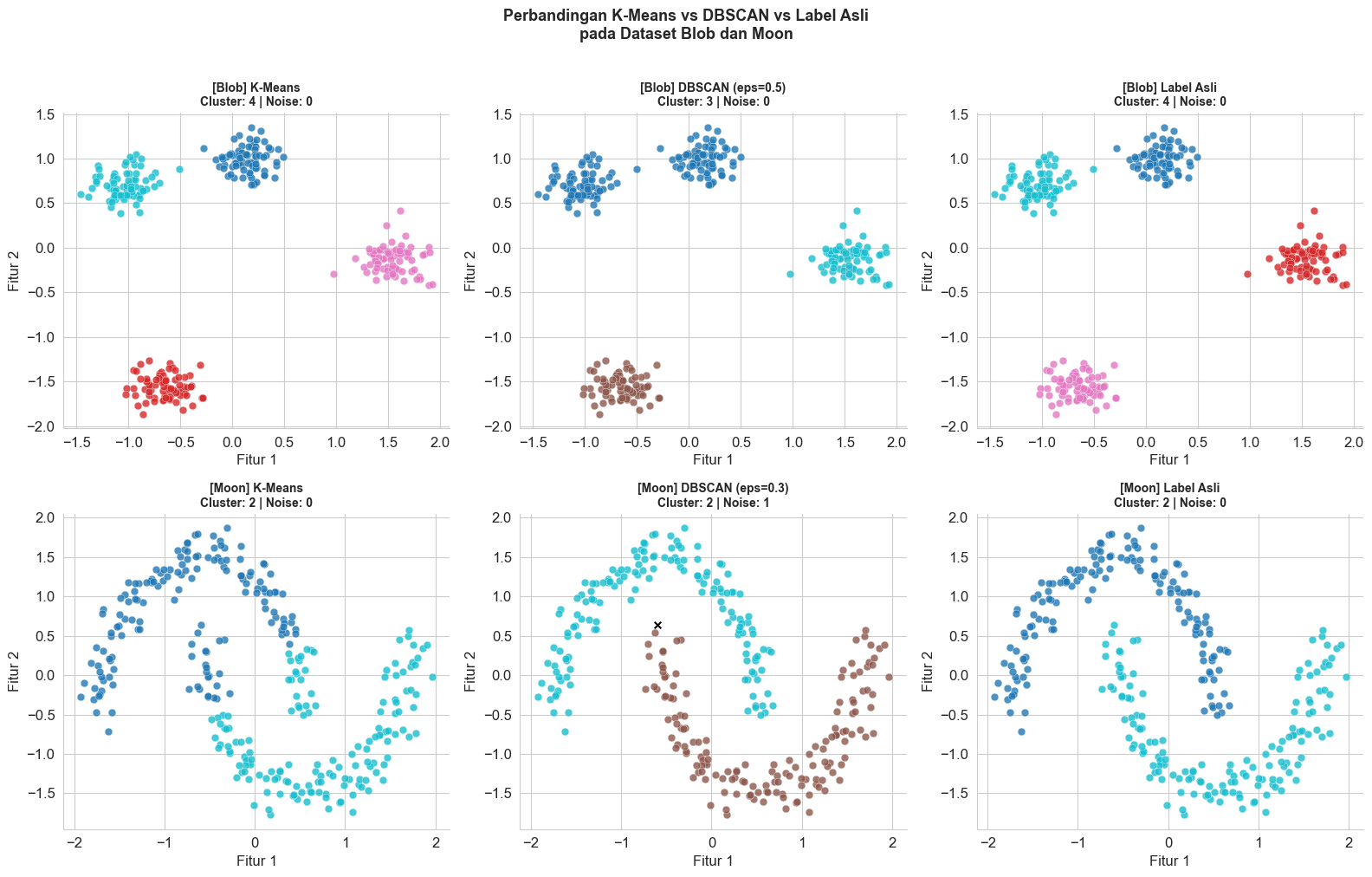

# DBSCAN: perbandingan di dataset Blob dan Moon
fig, axes = plt.subplots(2, 3, figsize=(16, 10))

datasets = [('Blob', X_blob_s, y_blob), ('Moon', X_moon_s, y_moon)]
configs = [
    ('K-Means (K=2)',   None,  None),
    ('DBSCAN',          None,  None),
    ('Label Asli',      None,  None),
]

for row, (ds_name, X_ds, y_ds) in enumerate(datasets):
    # K-Means
    n_true = len(np.unique(y_ds))
    km_ds = KMeans(n_clusters=n_true, random_state=42, n_init=10)
    lbl_km = km_ds.fit_predict(X_ds)

    # DBSCAN
    eps_val = 0.3 if ds_name == 'Moon' else 0.5
    db = DBSCAN(eps=eps_val, min_samples=8)
    lbl_db = db.fit_predict(X_ds)

    for col, (labels, title) in enumerate([
        (lbl_km, f'K-Means'),
        (lbl_db, f'DBSCAN (eps={eps_val})'),
        (y_ds,   f'Label Asli'),
    ]):
        ax = axes[row][col]
        unique_labels = np.unique(labels)
        cmap = plt.cm.get_cmap('tab10', len(unique_labels))

        for i, lbl in enumerate(unique_labels):
            mask = labels == lbl
            if lbl == -1:
                ax.scatter(X_ds[mask, 0], X_ds[mask, 1],
                           color='black', s=30, marker='x',
                           linewidths=1.5, label='Noise/Outlier', zorder=5)
            else:
                ax.scatter(X_ds[mask, 0], X_ds[mask, 1],
                           color=cmap(i), s=40, alpha=0.8,
                           edgecolors='white', linewidth=0.3,
                           label=f'Cluster {lbl}')
        noise_count = np.sum(labels == -1)
        n_clusters = len([l for l in unique_labels if l != -1])
        ax.set_title(f'[{ds_name}] {title}\nCluster: {n_clusters} | Noise: {noise_count}',
                     fontweight='bold', fontsize=10)
        ax.set_xlabel('Fitur 1'); ax.set_ylabel('Fitur 2')
        ax.spines[['top', 'right']].set_visible(False)

plt.suptitle('Perbandingan K-Means vs DBSCAN vs Label Asli\npada Dataset Blob dan Moon',
             fontsize=13, fontweight='bold', y=1.01)
plt.tight_layout()
plt.show()

# Ringkasan performa ketiga algoritma pada dataset blob
results = []
for name, labels in [
    ('K-Means (K=4)',       KMeans(n_clusters=4, random_state=42, n_init=10).fit_predict(X_blob_s)),
    ('Hierarchical (K=4)',  AgglomerativeClustering(n_clusters=4).fit_predict(X_blob_s)),
    ('DBSCAN',              DBSCAN(eps=0.5, min_samples=8).fit_predict(X_blob_s)),
]:
    valid = labels[labels != -1]
    X_valid = X_blob_s[labels != -1]
    n_clusters = len(set(valid))
    n_noise = np.sum(labels == -1)
    sil = silhouette_score(X_valid, valid) if n_clusters > 1 else float('nan')
    results.append({'Algoritma': name, 'Jumlah Cluster': n_clusters,
                    'Noise Points': n_noise, 'Silhouette Score': f'{sil:.4f}'})

df_res = pd.DataFrame(results)
print("Ringkasan Performa pada Dataset Blob:")
print(df_res.to_string(index=False))

# Memuat dataset Iris sebagai data berdimensi lebih tinggi
iris = load_iris()
X_iris = iris.data      # 4 fitur
y_iris = iris.target
target_names = iris.target_names

print("Dataset Iris:")
print(f"  Jumlah data  : {X_iris.shape[0]}")
print(f"  Jumlah fitur : {X_iris.shape[1]}")
print(f"  Nama fitur   : {list(iris.feature_names)}")
print(f"  Nama kelas   : {list(target_names)}")
print(f"\nTantangan: Bagaimana memvisualisasikan 4 dimensi sekaligus?")
print("Solusi: Kurangi menjadi 2 dimensi menggunakan PCA atau t-SNE!")

# Normalisasi data
scaler_iris = StandardScaler()
X_iris_s = scaler_iris.fit_transform(X_iris)

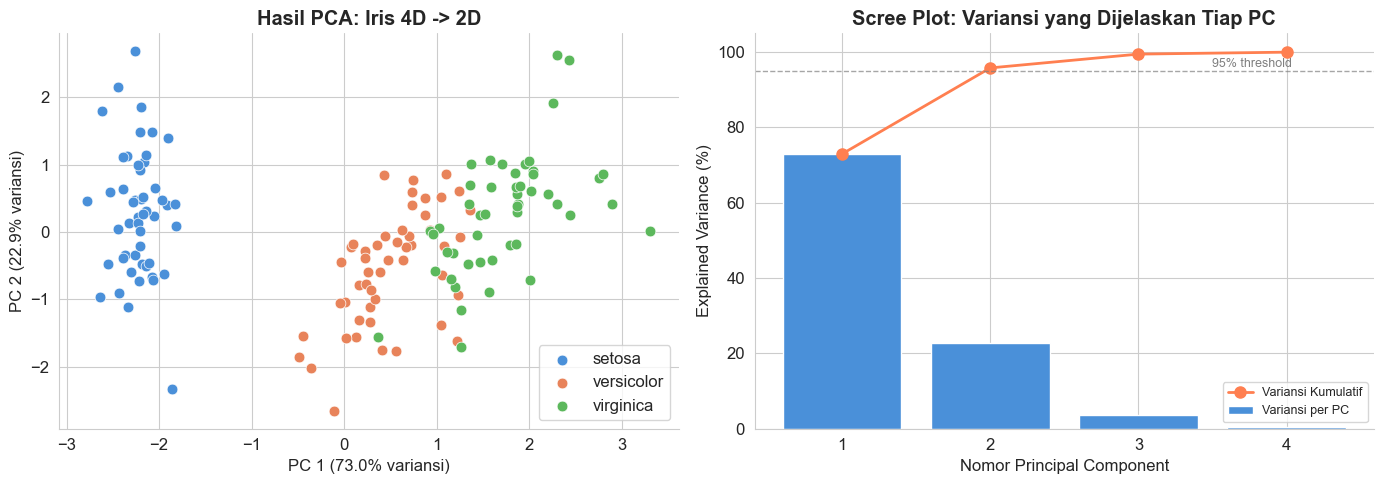

# PCA ke 2 komponen
pca = PCA(n_components=2, random_state=42)
X_pca = pca.fit_transform(X_iris_s)

fig, axes = plt.subplots(1, 2, figsize=(14, 5))

# Plot hasil PCA
palette_iris = ['#4A90D9', '#E8835A', '#5CB85C']
for i, name in enumerate(target_names):
    mask = y_iris == i
    axes[0].scatter(X_pca[mask, 0], X_pca[mask, 1],
                    color=palette_iris[i], label=name,
                    s=60, edgecolors='white', linewidth=0.5)
axes[0].set_xlabel(f'PC 1 ({pca.explained_variance_ratio_[0]*100:.1f}% variansi)')
axes[0].set_ylabel(f'PC 2 ({pca.explained_variance_ratio_[1]*100:.1f}% variansi)')
axes[0].set_title('Hasil PCA: Iris 4D -> 2D', fontweight='bold')
axes[0].legend()
axes[0].spines[['top', 'right']].set_visible(False)

# Scree Plot: Explained Variance
pca_full = PCA(random_state=42)
pca_full.fit(X_iris_s)
evr = pca_full.explained_variance_ratio_
cumulative = np.cumsum(evr)

axes[1].bar(range(1, len(evr)+1), evr*100, color='#4A90D9',
            edgecolor='white', label='Variansi per PC')
axes[1].plot(range(1, len(evr)+1), cumulative*100, 'o-',
             color='coral', linewidth=2, markersize=8, label='Variansi Kumulatif')
axes[1].axhline(95, color='gray', linestyle='--', linewidth=1, alpha=0.7)
axes[1].text(3.5, 96, '95% threshold', color='gray', fontsize=9)
axes[1].set_xlabel('Nomor Principal Component')
axes[1].set_ylabel('Explained Variance (%)')
axes[1].set_title('Scree Plot: Variansi yang Dijelaskan Tiap PC', fontweight='bold')
axes[1].legend(fontsize=9)
axes[1].spines[['top', 'right']].set_visible(False)
axes[1].set_xticks(range(1, len(evr)+1))

plt.tight_layout()
plt.show()

total_2pc = sum(pca.explained_variance_ratio_) * 100
print(f"Total variansi yang dipertahankan oleh 2 PC: {total_2pc:.1f}%")
print(f"Artinya: dengan hanya 2 fitur (dari 4), kita mempertahankan {total_2pc:.0f}% informasi asli.")

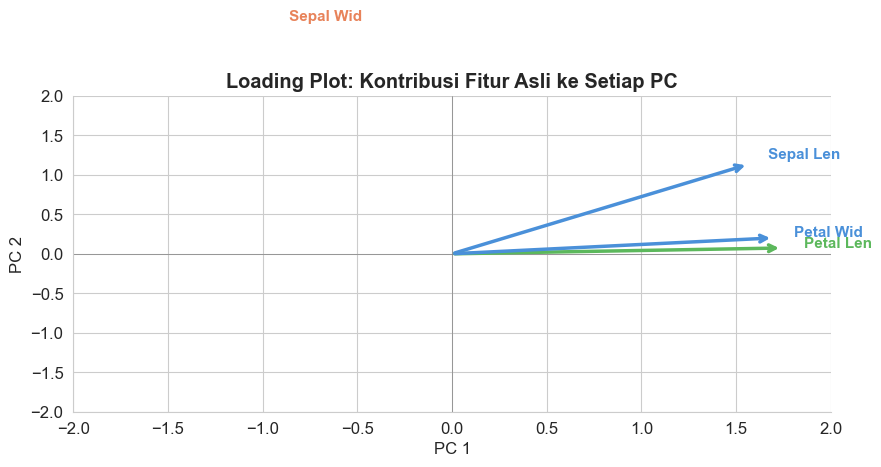

# Visualisasi: arti tiap PC (loading plot)
fig, ax = plt.subplots(figsize=(9, 5))

feature_names_short = ['Sepal Len', 'Sepal Wid', 'Petal Len', 'Petal Wid']
loadings = pca.components_.T

for i, (name, load) in enumerate(zip(feature_names_short, loadings)):
    ax.annotate('', xy=(load[0]*3, load[1]*3), xytext=(0, 0),
                arrowprops=dict(arrowstyle='->', color=palette_iris[i % 3], lw=2.5))
    ax.text(load[0]*3.2, load[1]*3.2, name, fontsize=11,
            color=palette_iris[i % 3], fontweight='bold')

ax.set_xlim(-2, 2); ax.set_ylim(-2, 2)
ax.axhline(0, color='gray', linewidth=0.5); ax.axvline(0, color='gray', linewidth=0.5)
ax.set_xlabel('PC 1'); ax.set_ylabel('PC 2')
ax.set_title('Loading Plot: Kontribusi Fitur Asli ke Setiap PC', fontweight='bold')
ax.spines[['top', 'right']].set_visible(False)
plt.tight_layout()
plt.show()

print("Interpretasi Loading Plot:")
print("  - Panah panjang = fitur tersebut sangat mempengaruhi PC tersebut.")
print("  - Panah searah = fitur berkorelasi positif.")
print("  - Panah berlawanan arah = fitur berkorelasi negatif.")

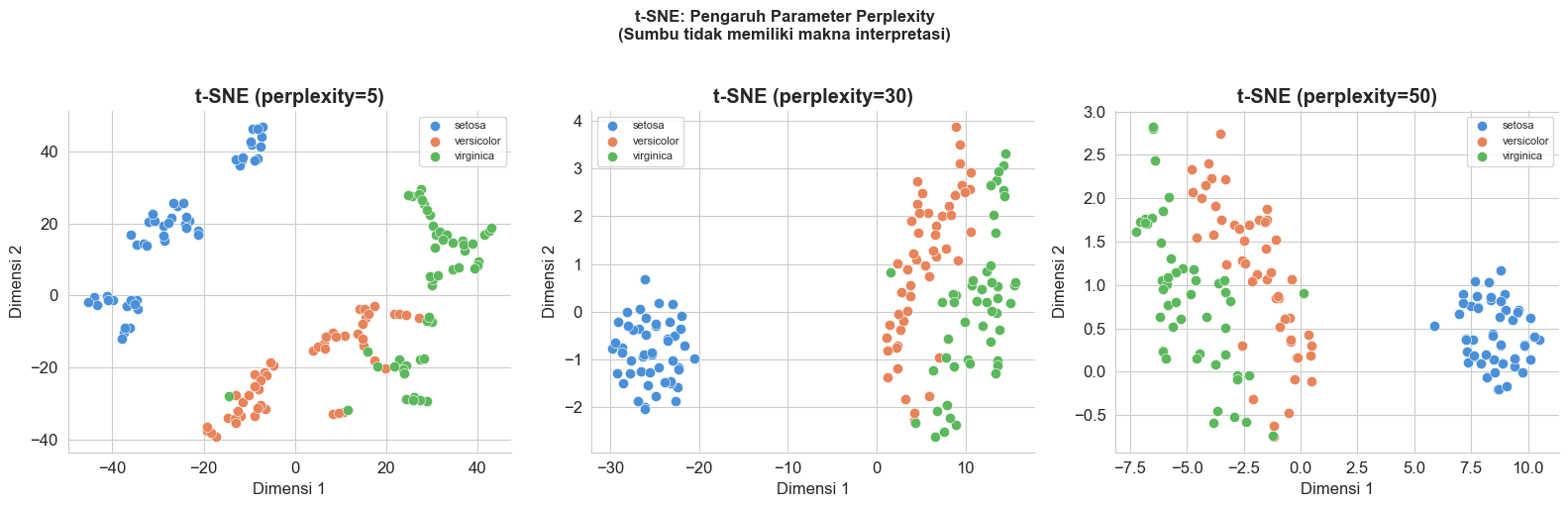

# t-SNE dengan berbagai nilai perplexity
perplexities = [5, 30, 50]
fig, axes = plt.subplots(1, 3, figsize=(16, 5))

for ax, perp in zip(axes, perplexities):
    tsne = TSNE(n_components=2, perplexity=perp, random_state=42, max_iter=1000)
    X_tsne = tsne.fit_transform(X_iris_s)

    for i, name in enumerate(target_names):
        mask = y_iris == i
        ax.scatter(X_tsne[mask, 0], X_tsne[mask, 1],
                   color=palette_iris[i], label=name,
                   s=55, edgecolors='white', linewidth=0.4)
    ax.set_title(f't-SNE (perplexity={perp})', fontweight='bold')
    ax.set_xlabel('Dimensi 1'); ax.set_ylabel('Dimensi 2')
    ax.legend(fontsize=8)
    ax.spines[['top', 'right']].set_visible(False)

plt.suptitle('t-SNE: Pengaruh Parameter Perplexity\n(Sumbu tidak memiliki makna interpretasi)',
             fontsize=12, fontweight='bold', y=1.02)
plt.tight_layout()
plt.show()

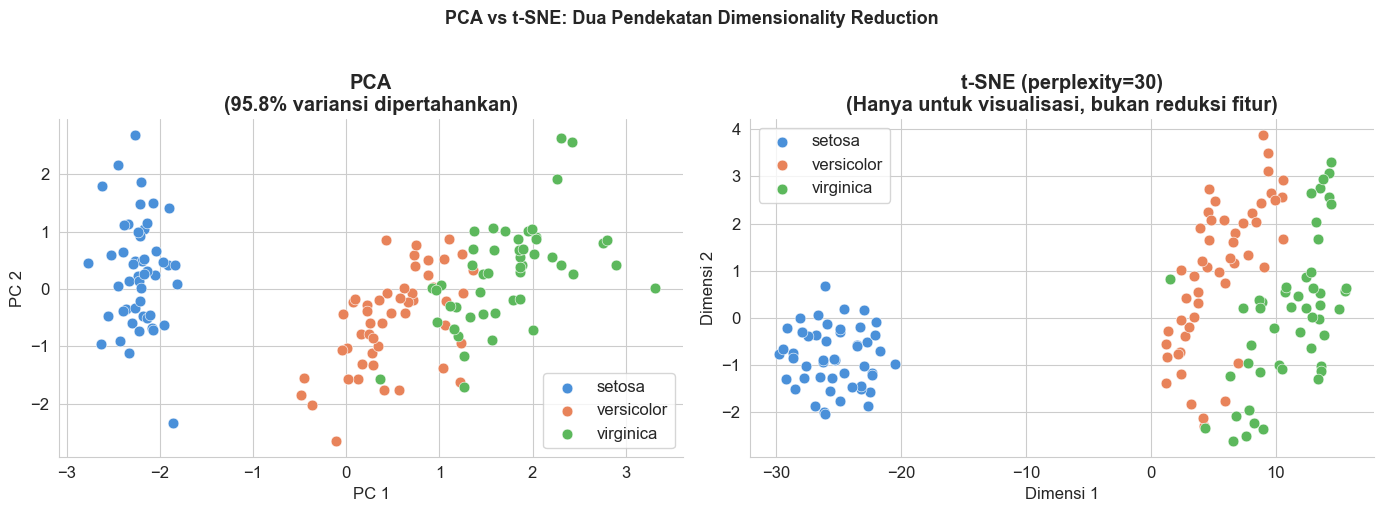

# Perbandingan langsung PCA vs t-SNE
fig, axes = plt.subplots(1, 2, figsize=(14, 5))

# PCA
for i, name in enumerate(target_names):
    mask = y_iris == i
    axes[0].scatter(X_pca[mask, 0], X_pca[mask, 1],
                    color=palette_iris[i], label=name,
                    s=60, edgecolors='white', linewidth=0.4)
axes[0].set_title(f'PCA\n({pca.explained_variance_ratio_.sum()*100:.1f}% variansi dipertahankan)',
                  fontweight='bold')
axes[0].set_xlabel('PC 1'); axes[0].set_ylabel('PC 2')
axes[0].legend()
axes[0].spines[['top', 'right']].set_visible(False)

# t-SNE (perplexity=30)
tsne_best = TSNE(n_components=2, perplexity=30, random_state=42, max_iter=1000)
X_tsne_best = tsne_best.fit_transform(X_iris_s)
for i, name in enumerate(target_names):
    mask = y_iris == i
    axes[1].scatter(X_tsne_best[mask, 0], X_tsne_best[mask, 1],
                    color=palette_iris[i], label=name,
                    s=60, edgecolors='white', linewidth=0.4)
axes[1].set_title('t-SNE (perplexity=30)\n(Hanya untuk visualisasi, bukan reduksi fitur)',
                  fontweight='bold')
axes[1].set_xlabel('Dimensi 1'); axes[1].set_ylabel('Dimensi 2')
axes[1].legend()
axes[1].spines[['top', 'right']].set_visible(False)

plt.suptitle('PCA vs t-SNE: Dua Pendekatan Dimensionality Reduction',
             fontsize=13, fontweight='bold', y=1.02)
plt.tight_layout()
plt.show()

print("Perhatikan:")
print("  PCA    : Cluster Setosa terpisah jelas, Versicolor dan Virginica sedikit tumpang tindih.")
print("  t-SNE  : Ketiga kelas terpisah lebih jelas, tapi posisi/jarak antar cluster tidak bermakna.")

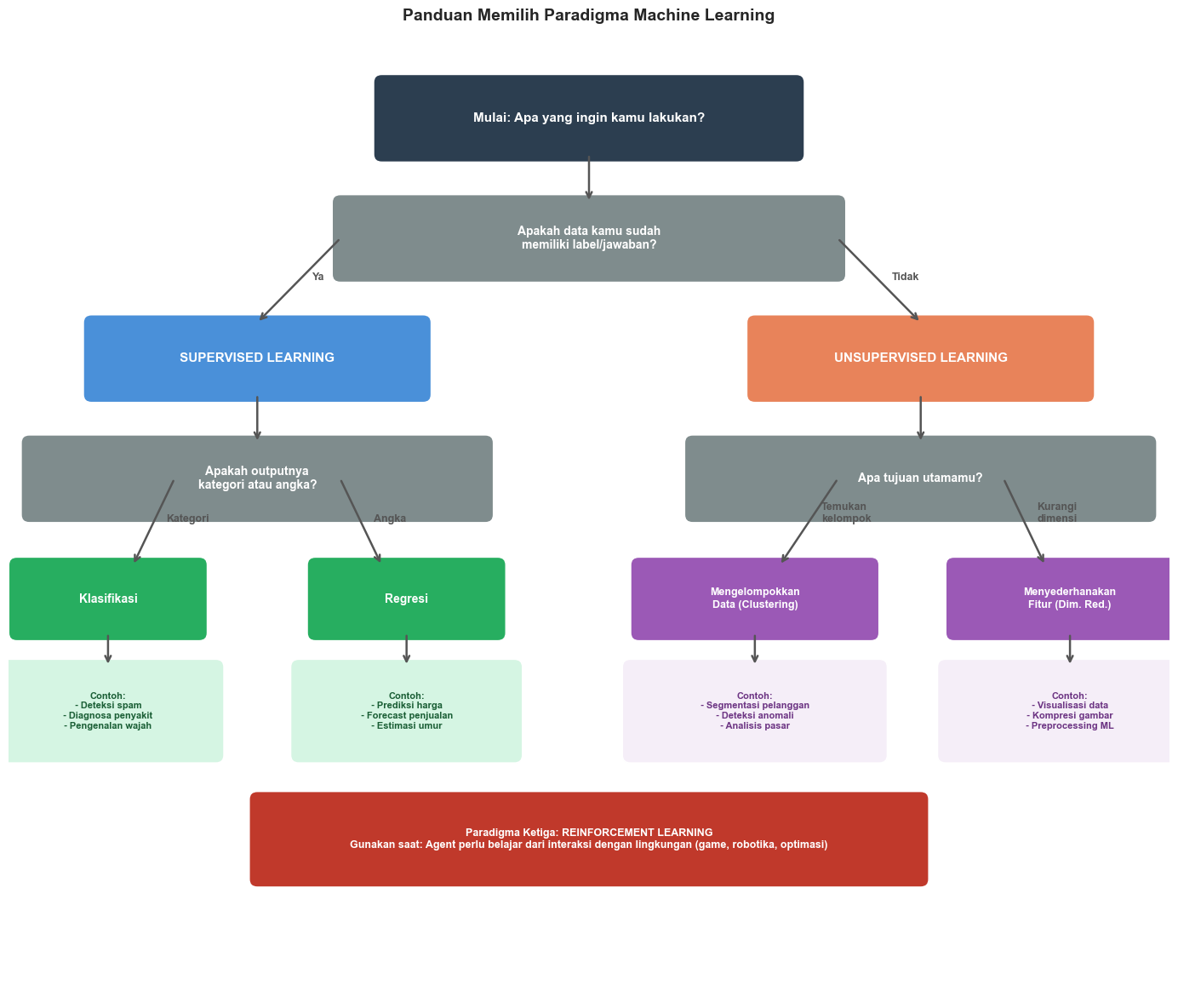

# Flowchart pemilihan paradigma ML
fig, ax = plt.subplots(figsize=(14, 12))
ax.set_xlim(0, 14); ax.set_ylim(0, 12); ax.axis('off')

def draw_box(ax, x, y, w, h, text, color, text_color='white', fontsize=10, style='round,pad=0.1'):
    box = mpatches.FancyBboxPatch((x - w/2, y - h/2), w, h,
                                   boxstyle=style,
                                   facecolor=color, edgecolor='white',
                                   linewidth=1.5, zorder=3)
    ax.add_patch(box)
    ax.text(x, y, text, ha='center', va='center', fontsize=fontsize,
            fontweight='bold', color=text_color, zorder=4,
            multialignment='center', wrap=True)

def arrow(ax, x1, y1, x2, y2, label='', color='#555'):
    ax.annotate('', xy=(x2, y2), xytext=(x1, y1),
                arrowprops=dict(arrowstyle='->', color=color, lw=1.8))
    if label:
        mx, my = (x1+x2)/2, (y1+y2)/2
        ax.text(mx+0.15, my, label, fontsize=9, color=color, fontweight='bold')

# Node utama
draw_box(ax, 7, 11, 5, 0.9, 'Mulai: Apa yang ingin kamu lakukan?',
         '#2c3e50', fontsize=11)

# Pertanyaan 1
draw_box(ax, 7, 9.5, 6, 0.9,
         'Apakah data kamu sudah\nmemiliki label/jawaban?',
         '#7f8c8d', fontsize=10)
arrow(ax, 7, 10.55, 7, 9.95)

# Ya -> Supervised
draw_box(ax, 3, 8, 4, 0.9, 'SUPERVISED LEARNING', '#4A90D9', fontsize=11)
arrow(ax, 4, 9.5, 3, 8.45, 'Ya')

# Tidak -> Unsupervised
draw_box(ax, 11, 8, 4, 0.9, 'UNSUPERVISED LEARNING', '#E8835A', fontsize=11)
arrow(ax, 10, 9.5, 11, 8.45, 'Tidak')

# Supervised -> Klasifikasi / Regresi
draw_box(ax, 3, 6.5, 5.5, 0.9,
         'Apakah outputnya\nkategori atau angka?', '#7f8c8d', fontsize=10)
arrow(ax, 3, 7.55, 3, 6.95)

draw_box(ax, 1.2, 5.0, 2.2, 0.85, 'Klasifikasi', '#27ae60', fontsize=10)
arrow(ax, 2.0, 6.5, 1.5, 5.42, 'Kategori')

draw_box(ax, 4.8, 5.0, 2.2, 0.85, 'Regresi', '#27ae60', fontsize=10)
arrow(ax, 4.0, 6.5, 4.5, 5.42, 'Angka')

# Contoh Supervised
draw_box(ax, 1.2, 3.6, 2.6, 1.1,
         'Contoh:\n- Deteksi spam\n- Diagnosa penyakit\n- Pengenalan wajah',
         '#d5f5e3', '#1a5e35', fontsize=8, style='round,pad=0.1')
arrow(ax, 1.2, 4.57, 1.2, 4.16)

draw_box(ax, 4.8, 3.6, 2.6, 1.1,
         'Contoh:\n- Prediksi harga\n- Forecast penjualan\n- Estimasi umur',
         '#d5f5e3', '#1a5e35', fontsize=8, style='round,pad=0.1')
arrow(ax, 4.8, 4.57, 4.8, 4.16)

# Unsupervised -> Clustering / Dim Red
draw_box(ax, 11, 6.5, 5.5, 0.9,
         'Apa tujuan utamamu?', '#7f8c8d', fontsize=10)
arrow(ax, 11, 7.55, 11, 6.95)

draw_box(ax, 9, 5.0, 2.8, 0.85, 'Mengelompokkan\nData (Clustering)', '#9b59b6', fontsize=9)
arrow(ax, 10, 6.5, 9.3, 5.42, 'Temukan\nkelompok')

draw_box(ax, 12.8, 5.0, 2.8, 0.85, 'Menyederhanakan\nFitur (Dim. Red.)', '#9b59b6', fontsize=9)
arrow(ax, 12.0, 6.5, 12.5, 5.42, 'Kurangi\ndimensi')

# Contoh Unsupervised
draw_box(ax, 9, 3.6, 3.0, 1.1,
         'Contoh:\n- Segmentasi pelanggan\n- Deteksi anomali\n- Analisis pasar',
         '#f5eef8', '#6c3483', fontsize=8, style='round,pad=0.1')
arrow(ax, 9, 4.57, 9, 4.16)

draw_box(ax, 12.8, 3.6, 3.0, 1.1,
         'Contoh:\n- Visualisasi data\n- Kompresi gambar\n- Preprocessing ML',
         '#f5eef8', '#6c3483', fontsize=8, style='round,pad=0.1')
arrow(ax, 12.8, 4.57, 12.8, 4.16)

# RL note
draw_box(ax, 7, 2.0, 8, 1.0,
         'Paradigma Ketiga: REINFORCEMENT LEARNING\n'
         'Gunakan saat: Agent perlu belajar dari interaksi dengan lingkungan (game, robotika, optimasi)',
         '#c0392b', fontsize=9)

ax.set_title('Panduan Memilih Paradigma Machine Learning',
             fontsize=14, fontweight='bold', pad=15)
plt.tight_layout()
plt.show()

# Contoh konkret: Analisis Pelanggan E-Commerce
np.random.seed(7)
n_cust = 200

df_cust = pd.DataFrame({
    'total_belanja_juta'  : np.round(np.random.exponential(2, n_cust), 2),
    'frekuensi_beli'      : np.random.randint(1, 30, n_cust),
    'hari_sejak_terakhir' : np.random.randint(1, 365, n_cust),
})

# ---- SKENARIO 1: Supervised ----
# "Apakah pelanggan ini akan churn (berhenti)?"
# -> Butuh label historis (churn atau tidak)
df_cust['churn'] = (
    (df_cust['hari_sejak_terakhir'] > 180) &
    (df_cust['frekuensi_beli'] < 5)
).astype(int)

# ---- SKENARIO 2: Unsupervised ----
# "Siapa saja segmen pelanggan kita?"
# -> Tidak butuh label, temukan sendiri
X_cust = StandardScaler().fit_transform(
    df_cust[['total_belanja_juta', 'frekuensi_beli', 'hari_sejak_terakhir']]
)
km_cust = KMeans(n_clusters=3, random_state=42, n_init=10)
df_cust['segmen'] = km_cust.fit_predict(X_cust)
seg_labels = {0: 'Pelanggan Aktif', 1: 'Pelanggan Pasif', 2: 'Pelanggan Premium'}
df_cust['nama_segmen'] = df_cust['segmen'].map(seg_labels)

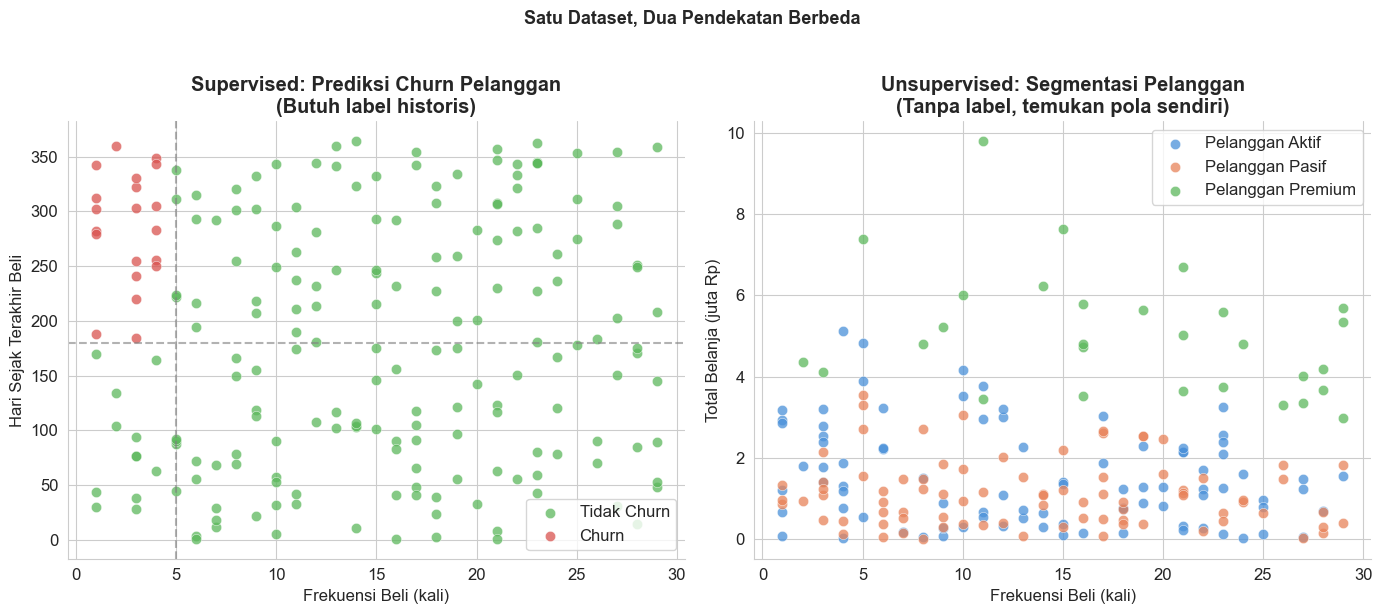

fig, axes = plt.subplots(1, 2, figsize=(14, 6))

# Panel Supervised: Prediksi Churn
colors_churn = {0: '#5CB85C', 1: '#d9534f'}
for c in [0, 1]:
    mask = df_cust['churn'] == c
    axes[0].scatter(df_cust.loc[mask, 'frekuensi_beli'],
                    df_cust.loc[mask, 'hari_sejak_terakhir'],
                    color=colors_churn[c], s=55, alpha=0.75,
                    edgecolors='white', linewidth=0.4,
                    label='Churn' if c == 1 else 'Tidak Churn')
axes[0].axvline(5, color='gray', linestyle='--', linewidth=1.5, alpha=0.6)
axes[0].axhline(180, color='gray', linestyle='--', linewidth=1.5, alpha=0.6)
axes[0].set_xlabel('Frekuensi Beli (kali)')
axes[0].set_ylabel('Hari Sejak Terakhir Beli')
axes[0].set_title('Supervised: Prediksi Churn Pelanggan\n(Butuh label historis)', fontweight='bold')
axes[0].legend()
axes[0].spines[['top', 'right']].set_visible(False)

# Panel Unsupervised: Segmentasi
colors_seg = {'Pelanggan Aktif': '#4A90D9', 'Pelanggan Pasif': '#E8835A', 'Pelanggan Premium': '#5CB85C'}
for seg, color in colors_seg.items():
    mask = df_cust['nama_segmen'] == seg
    axes[1].scatter(df_cust.loc[mask, 'frekuensi_beli'],
                    df_cust.loc[mask, 'total_belanja_juta'],
                    color=color, s=55, alpha=0.75,
                    edgecolors='white', linewidth=0.4, label=seg)
axes[1].set_xlabel('Frekuensi Beli (kali)')
axes[1].set_ylabel('Total Belanja (juta Rp)')
axes[1].set_title('Unsupervised: Segmentasi Pelanggan\n(Tanpa label, temukan pola sendiri)',
                  fontweight='bold')
axes[1].legend()
axes[1].spines[['top', 'right']].set_visible(False)

plt.suptitle('Satu Dataset, Dua Pendekatan Berbeda',
             fontsize=13, fontweight='bold', y=1.02)
plt.tight_layout()
plt.show()

# Ringkasan segmen
print("Profil Rata-rata Tiap Segmen Pelanggan (Unsupervised):")
print(df_cust.groupby('nama_segmen')[
    ['total_belanja_juta', 'frekuensi_beli', 'hari_sejak_terakhir']
].mean().round(1).to_string())
