Supervised Learning

# Library umum untuk manipulasi data
import numpy as np
import pandas as pd

# Library untuk visualisasi
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
import seaborn as sns

# Library machine learning
from sklearn.datasets import load_iris, make_regression, make_classification
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
from sklearn.metrics import accuracy_score, classification_report, mean_squared_error

# Algoritma Klasifikasi
from sklearn.linear_model import LogisticRegression
from sklearn.tree import DecisionTreeClassifier, plot_tree
from sklearn.ensemble import RandomForestClassifier
from sklearn.svm import SVC
from sklearn.neighbors import KNeighborsClassifier

# Algoritma Regresi
from sklearn.linear_model import LinearRegression, Ridge, Lasso
from sklearn.preprocessing import PolynomialFeatures
from sklearn.pipeline import Pipeline

# Agar plot lebih rapi
plt.rcParams['figure.figsize'] = (10, 5)
plt.rcParams['font.size'] = 12
sns.set_style("whitegrid")

import warnings
warnings.filterwarnings('ignore')

# Memuat dataset Iris
iris = load_iris()
X = iris.data          # Fitur: 4 kolom (ukuran kelopak)
y = iris.target        # Label: 0=Setosa, 1=Versicolor, 2=Virginica

# Membagi data: 80% untuk latih, 20% untuk uji
X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.3, random_state=2026
)

# Normalisasi fitur (penting untuk beberapa algoritma)
scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)
X_test_scaled  = scaler.transform(X_test)

print(f"Total data   : {len(X)} baris")
print(f"Data latih   : {len(X_train)} baris")
print(f"Data uji     : {len(X_test)} baris")
print(f"\nKelas bunga  : {iris.target_names}")
print(f"Fitur        : {iris.feature_names}")
print(f"\nContoh 5 data pertama:")
df_iris = pd.DataFrame(X[:5], columns=iris.feature_names)
df_iris["Jenis Bunga"] = [iris.target_names[i] for i in y[:5]]
print(df_iris.to_string(index=False))

# Decision Tree
dt_model = DecisionTreeClassifier(max_depth=3, random_state=2026)
dt_model.fit(X_train, y_train)   # Decision Tree tidak perlu scaling

y_pred_dt = dt_model.predict(X_test)
acc_dt = accuracy_score(y_test, y_pred_dt)

print(f"Decision Tree - Akurasi: {acc_dt:.2%}")

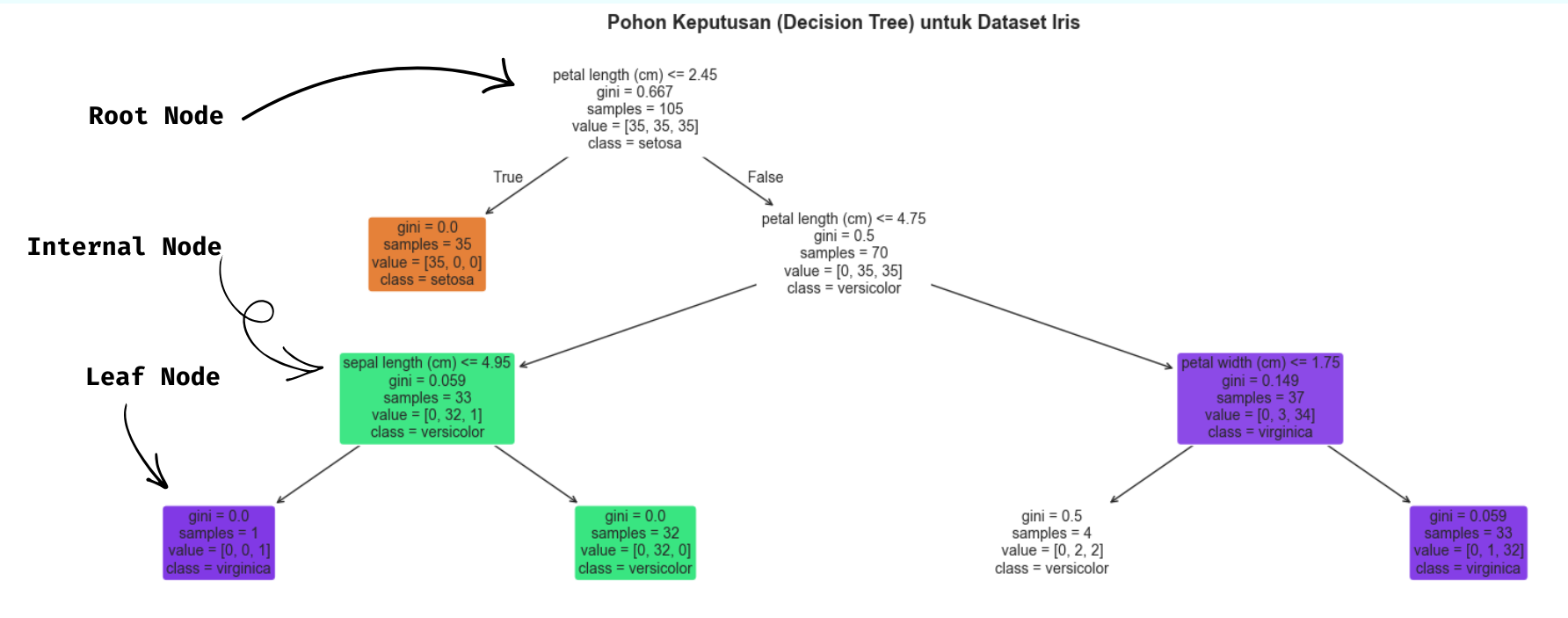

# Visualisasi pohon keputusan
fig, ax = plt.subplots(figsize=(16, 6))
plot_tree(dt_model,
          feature_names=iris.feature_names,
          class_names=iris.target_names,
          filled=True, rounded=True, fontsize=10, ax=ax)
ax.set_title("Pohon Keputusan (Decision Tree) untuk Dataset Iris",
             fontsize=13, fontweight='bold')
plt.tight_layout()
plt.show()

# Random Forest
rf_model = RandomForestClassifier(n_estimators=100, random_state=2026)
rf_model.fit(X_train, y_train)

y_pred_rf = rf_model.predict(X_test)
acc_rf = accuracy_score(y_test, y_pred_rf)

print(f"Random Forest - Akurasi: {acc_rf:.2%}")

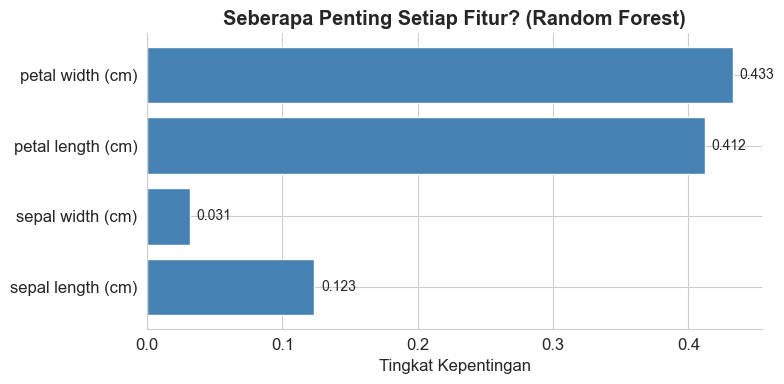

# Visualisasi Feature Importance
importances = rf_model.feature_importances_
feat_names = iris.feature_names

fig, ax = plt.subplots(figsize=(8, 4))
bars = ax.barh(feat_names, importances, color='steelblue', edgecolor='white')
ax.set_xlabel('Tingkat Kepentingan')
ax.set_title('Seberapa Penting Setiap Fitur? (Random Forest)', fontweight='bold')
for bar, val in zip(bars, importances):
    ax.text(val + 0.005, bar.get_y() + bar.get_height()/2,
            f'{val:.3f}', va='center', fontsize=10)
ax.spines[['top', 'right']].set_visible(False)
plt.tight_layout()
plt.show()

print("\nFitur terpenting:", feat_names[np.argmax(importances)])

# SVM - Train pada 2 fitur pertama untuk visualisasi
X_train_2d = X_train_scaled[:, :2]
X_test_2d = X_test_scaled[:, :2]

svm_model_2d = SVC(kernel='rbf', C=1.0, random_state=2026)
svm_model_2d.fit(X_train_2d, y_train)

y_pred_svm_2d = svm_model_2d.predict(X_test_2d)
acc_svm_2d = accuracy_score(y_test, y_pred_svm_2d)


# SVM pada semua fitur
svm_model = SVC(kernel='rbf', C=1.0, random_state=2026)
svm_model.fit(X_train_scaled, y_train)

y_pred_svm = svm_model.predict(X_test_scaled)
acc_svm = accuracy_score(y_test, y_pred_svm)

print(f"\nSVM (2 fitur) - Akurasi: {acc_svm_2d:.2%}")
print(f"SVM (4 fitur) - Akurasi: {acc_svm:.2%}")

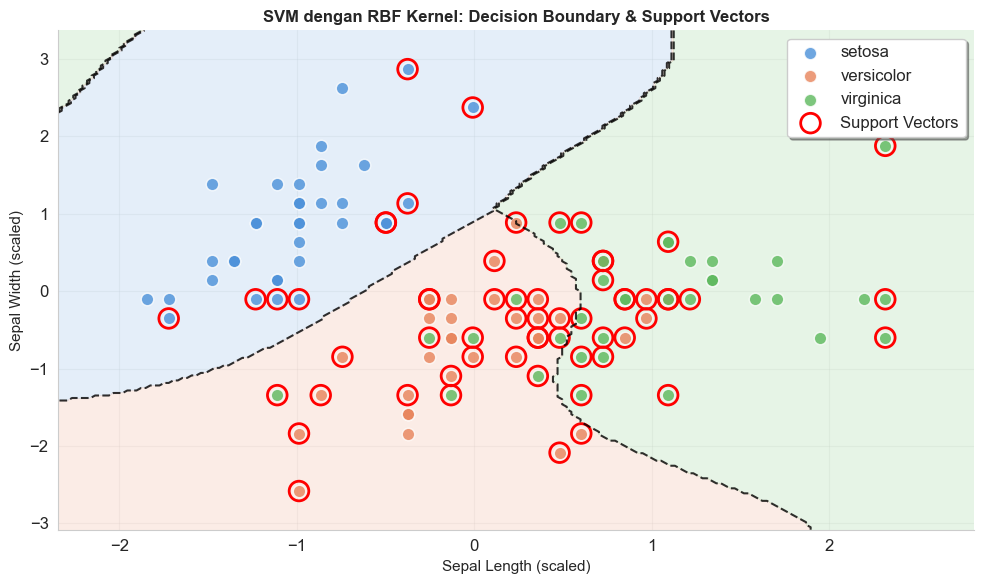

# Visualisasi dengan decision boundary
fig, ax = plt.subplots(figsize=(10, 6))

# Membuat mesh grid untuk decision boundary
x_min, x_max = X_train_2d[:, 0].min() - 0.5, X_train_2d[:, 0].max() + 0.5
y_min, y_max = X_train_2d[:, 1].min() - 0.5, X_train_2d[:, 1].max() + 0.5
xx, yy = np.meshgrid(np.linspace(x_min, x_max, 200),
                     np.linspace(y_min, y_max, 200))

# Prediksi untuk setiap titik di mesh
Z = svm_model_2d.predict(np.c_[xx.ravel(), yy.ravel()])
Z = Z.reshape(xx.shape)

# Plot decision boundary dengan warna transparan
colors_decision = ['#4A90D9', '#E8835A', '#5CB85C']
ax.contourf(xx, yy, Z, alpha=0.15, levels=[-0.5, 0.5, 1.5, 2.5],
            colors=colors_decision)

# Plot decision boundary lines (garis pemisah)
ax.contour(xx, yy, Z, colors='black', linewidths=1.5,
           levels=[0.5, 1.5], linestyles='--', alpha=0.8)

# Plot data points
colors_map = {0: '#4A90D9', 1: '#E8835A', 2: '#5CB85C'}
for cls in [0, 1, 2]:
    mask = y_train == cls
    ax.scatter(X_train_2d[mask, 0], X_train_2d[mask, 1],
               c=colors_map[cls], label=iris.target_names[cls],
               s=80, edgecolors='white', linewidth=1, alpha=0.8)

# Highlight support vectors
sv_indices = svm_model_2d.support_
ax.scatter(X_train_2d[sv_indices, 0], X_train_2d[sv_indices, 1],
           s=200, linewidths=2, facecolors='none',
           edgecolors='red', label='Support Vectors')

ax.set_xlabel('Sepal Length (scaled)', fontsize=11)
ax.set_ylabel('Sepal Width (scaled)', fontsize=11)
ax.set_title('SVM dengan RBF Kernel: Decision Boundary & Support Vectors',
             fontweight='bold', fontsize=12)
ax.legend(loc='best', frameon=True, shadow=True)
ax.spines[['top', 'right']].set_visible(False)
ax.grid(True, alpha=0.2)
plt.tight_layout()
plt.show()

# KNN
knn_model = KNeighborsClassifier(n_neighbors=5)
knn_model.fit(X_train_scaled, y_train)

y_pred_knn = knn_model.predict(X_test_scaled)
acc_knn = accuracy_score(y_test, y_pred_knn)

print(f"KNN (K=5) - Akurasi: {acc_knn:.2%}")

# Mencari K terbaik
k_values = range(1, 21)
k_scores = []
for k in k_values:
    m = KNeighborsClassifier(n_neighbors=k)
    m.fit(X_train_scaled, y_train)
    k_scores.append(accuracy_score(y_test, m.predict(X_test_scaled)))

best_k = k_values[np.argmax(k_scores)]
print(f"K terbaik = {best_k} dengan akurasi: {max(k_scores):.2%}")

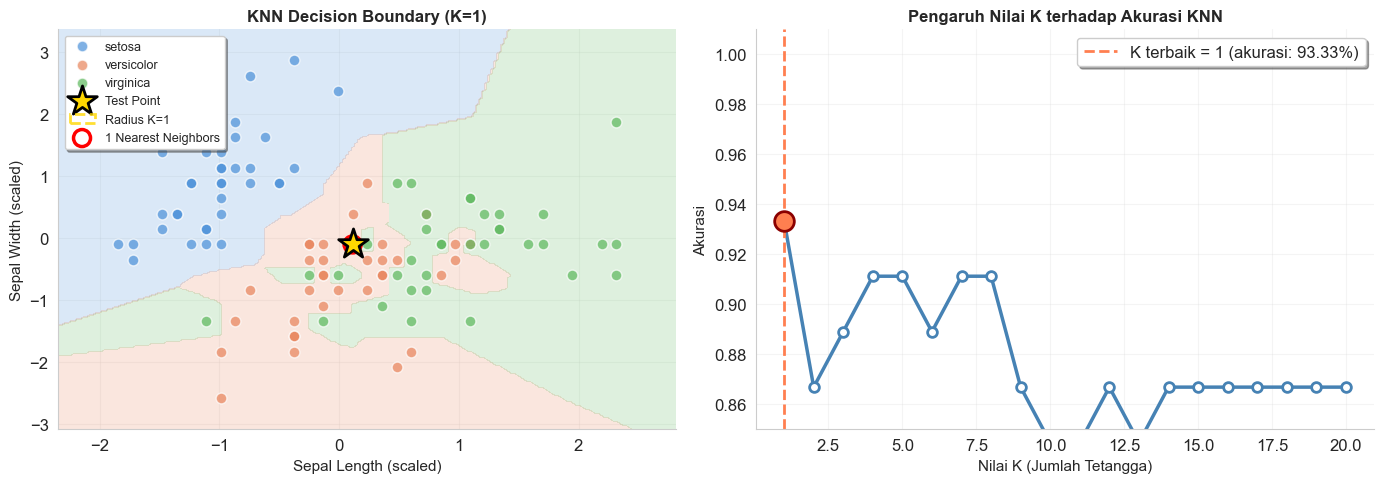

# ===== VISUALISASI BARU: KNN Decision Boundary & Neighbors =====
fig, axes = plt.subplots(1, 2, figsize=(14, 5))

# Plot 1: Decision Boundary KNN
ax1 = axes[0]
X_train_2d = X_train_scaled[:, :2]
X_test_2d = X_test_scaled[:, :2]

knn_model_2d = KNeighborsClassifier(n_neighbors=best_k)
knn_model_2d.fit(X_train_2d, y_train)

# Mesh grid untuk decision boundary
x_min, x_max = X_train_2d[:, 0].min() - 0.5, X_train_2d[:, 0].max() + 0.5
y_min, y_max = X_train_2d[:, 1].min() - 0.5, X_train_2d[:, 1].max() + 0.5
xx, yy = np.meshgrid(np.linspace(x_min, x_max, 200),
                     np.linspace(y_min, y_max, 200))

Z = knn_model_2d.predict(np.c_[xx.ravel(), yy.ravel()])
Z = Z.reshape(xx.shape)

# Plot decision regions
colors_decision = ['#4A90D9', '#E8835A', '#5CB85C']
ax1.contourf(xx, yy, Z, alpha=0.2, levels=[-0.5, 0.5, 1.5, 2.5],
             colors=colors_decision)

# Plot training data
colors_map = {0: '#4A90D9', 1: '#E8835A', 2: '#5CB85C'}
for cls in [0, 1, 2]:
    mask = y_train == cls
    ax1.scatter(X_train_2d[mask, 0], X_train_2d[mask, 1],
                c=colors_map[cls], label=iris.target_names[cls],
                s=60, edgecolors='white', linewidth=1, alpha=0.7)

# Pilih satu test point untuk demonstrasi
test_point_idx = 5
test_point = X_test_2d[test_point_idx].reshape(1, -1)
test_label = y_test[test_point_idx]

# Plot test point (bintang besar)
ax1.scatter(test_point[0, 0], test_point[0, 1],
           marker='*', s=500, c='gold', edgecolors='black',
           linewidth=2, zorder=10, label='Test Point')

# Cari K nearest neighbors
distances, indices = knn_model_2d.kneighbors(test_point)
neighbors = X_train_2d[indices[0]]

# Gambar lingkaran radius ke neighbor terjauh
max_dist = distances[0][-1]
circle = plt.Circle((test_point[0, 0], test_point[0, 1]),
                    max_dist, color='gold', fill=False,
                    linewidth=2, linestyle='--', alpha=0.8,
                    label=f'Radius K={best_k}')
ax1.add_patch(circle)

# Highlight K nearest neighbors
ax1.scatter(neighbors[:, 0], neighbors[:, 1],
           s=150, facecolors='none', edgecolors='red',
           linewidth=2.5, zorder=9, label=f'{best_k} Nearest Neighbors')

# Garis dari test point ke neighbors
for neighbor in neighbors:
    ax1.plot([test_point[0, 0], neighbor[0]],
            [test_point[0, 1], neighbor[1]],
            'r--', linewidth=1, alpha=0.4, zorder=1)

ax1.set_xlabel('Sepal Length (scaled)', fontsize=11)
ax1.set_ylabel('Sepal Width (scaled)', fontsize=11)
ax1.set_title(f'KNN Decision Boundary (K={best_k})', fontweight='bold', fontsize=12)
ax1.legend(loc='best', frameon=True, shadow=True, fontsize=9)
ax1.spines[['top', 'right']].set_visible(False)
ax1.grid(True, alpha=0.2)

# Plot 2: Pengaruh K terhadap Akurasi
ax2 = axes[1]
ax2.plot(k_values, k_scores, marker='o', color='steelblue',
         linewidth=2.5, markersize=7, markerfacecolor='white',
         markeredgewidth=2)
ax2.axvline(best_k, color='coral', linestyle='--', linewidth=2,
            label=f'K terbaik = {best_k} (akurasi: {max(k_scores):.2%})')
ax2.scatter([best_k], [max(k_scores)], s=200, c='coral',
           edgecolors='darkred', linewidth=2, zorder=10)

ax2.set_xlabel('Nilai K (Jumlah Tetangga)', fontsize=11)
ax2.set_ylabel('Akurasi', fontsize=11)
ax2.set_title('Pengaruh Nilai K terhadap Akurasi KNN', fontweight='bold', fontsize=12)
ax2.legend(loc='best', frameon=True, shadow=True)
ax2.spines[['top', 'right']].set_visible(False)
ax2.grid(True, alpha=0.2)
ax2.set_ylim([0.85, 1.01])

plt.tight_layout()
plt.show()

# Membuat dataset regresi sintetis
np.random.seed(2026)
n = 120
X_base = np.sort(np.random.uniform(30, 200, n))

# Simulasi harga rumah: ada hubungan non-linier + noise
y_reg = 150 + 2.5 * X_base + 0.012 * (X_base - 100)**2 + np.random.randn(n) * 30

X_reg = X_base.reshape(-1, 1)

# Split data
X_tr, X_te, y_tr, y_te = train_test_split(X_reg, y_reg, test_size=0.25, random_state=42)

print(f"Dataset regresi sintetis:")
print(f"  Total data    : {n} baris")
print(f"  Data latih    : {len(X_tr)} baris")
print(f"  Data uji      : {len(X_te)} baris")
print(f"  Fitur         : Luas Bangunan (m2)")
print(f"  Target        : Harga Rumah (dalam juta rupiah)")

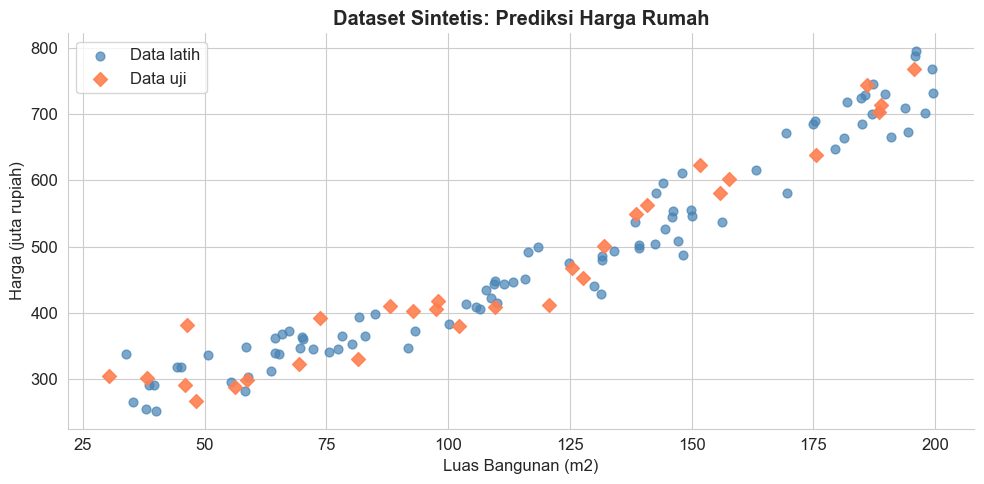

fig, ax = plt.subplots(figsize=(10, 5))
ax.scatter(X_tr, y_tr, color='steelblue', alpha=0.7, label='Data latih', s=40)
ax.scatter(X_te, y_te, color='coral', alpha=0.9, label='Data uji', s=50, marker='D')
ax.set_xlabel('Luas Bangunan (m2)')
ax.set_ylabel('Harga (juta rupiah)')
ax.set_title('Dataset Sintetis: Prediksi Harga Rumah', fontweight='bold')
ax.legend()
ax.spines[['top', 'right']].set_visible(False)
plt.tight_layout()
plt.show()

# Linear Regression
lin_model = LinearRegression()
lin_model.fit(X_tr, y_tr)

y_pred_lin = lin_model.predict(X_te)
rmse_lin = np.sqrt(mean_squared_error(y_te, y_pred_lin))

print(f"Linear Regression:")
print(f"  Persamaan : y = {lin_model.coef_[0]:.2f} * luas + {lin_model.intercept_:.2f}")
print(f"  RMSE      : {rmse_lin:.2f} juta rupiah")
print(f"  (rata-rata selisih prediksi vs aktual = {rmse_lin:.0f} juta)")

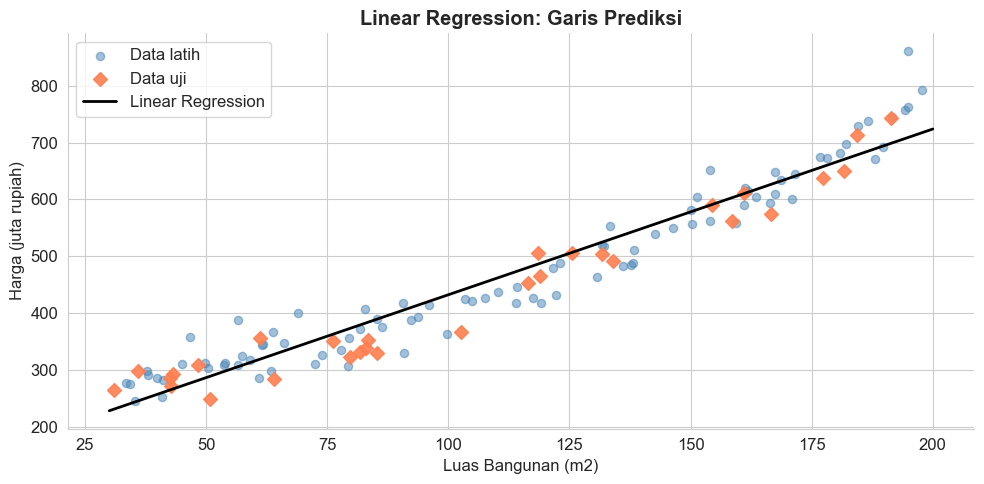

fig, ax = plt.subplots(figsize=(10, 5))
X_plot = np.linspace(30, 200, 300).reshape(-1, 1)

ax.scatter(X_tr, y_tr, color='steelblue', alpha=0.5, label='Data latih', s=35)
ax.scatter(X_te, y_te, color='coral', alpha=0.9, label='Data uji', s=50, marker='D')
ax.plot(X_plot, lin_model.predict(X_plot), 'k-', linewidth=2, label='Linear Regression')

ax.set_xlabel('Luas Bangunan (m2)')
ax.set_ylabel('Harga (juta rupiah)')
ax.set_title('Linear Regression: Garis Prediksi', fontweight='bold')
ax.legend()
ax.spines[['top', 'right']].set_visible(False)
plt.tight_layout()
plt.show()

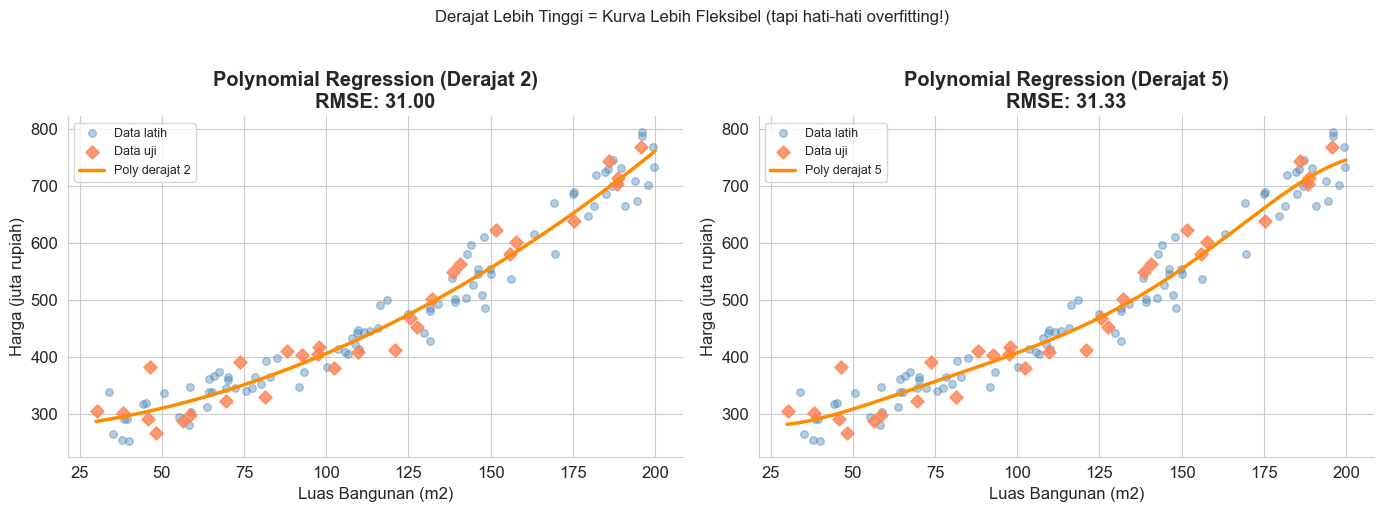

# Polynomial Regression (derajat 2 dan 5)
fig, axes = plt.subplots(1, 2, figsize=(14, 5))

for idx, degree in enumerate([2, 5]):
    poly_model = Pipeline([
        ('poly', PolynomialFeatures(degree=degree)),
        ('lin', LinearRegression())
    ])
    poly_model.fit(X_tr, y_tr)
    y_pred_poly = poly_model.predict(X_te)
    rmse_poly = np.sqrt(mean_squared_error(y_te, y_pred_poly))

    if degree == 2:
        rmse_poly2 = rmse_poly

    ax = axes[idx]
    ax.scatter(X_tr, y_tr, color='steelblue', alpha=0.4, s=30, label='Data latih')
    ax.scatter(X_te, y_te, color='coral', alpha=0.8, s=45, marker='D', label='Data uji')
    ax.plot(X_plot, poly_model.predict(X_plot),
            color='darkorange', linewidth=2.5, label=f'Poly derajat {degree}')
    ax.set_xlabel('Luas Bangunan (m2)')
    ax.set_ylabel('Harga (juta rupiah)')
    ax.set_title(f'Polynomial Regression (Derajat {degree})\nRMSE: {rmse_poly:.2f}',
                 fontweight='bold')
    ax.legend(fontsize=9)
    ax.spines[['top', 'right']].set_visible(False)

plt.suptitle('Derajat Lebih Tinggi = Kurva Lebih Fleksibel (tapi hati-hati overfitting!)',
             fontsize=12, y=1.02)
plt.tight_layout()
plt.show()

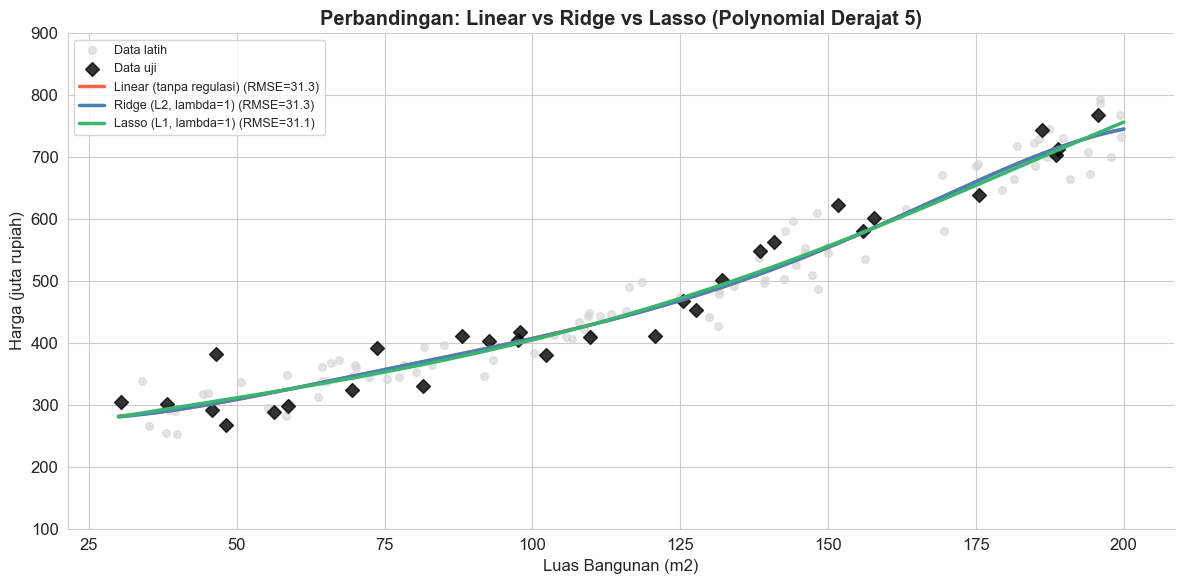

# Perbandingan Linear, Ridge, dan Lasso dengan fitur polynomial
poly_features = PolynomialFeatures(degree=5)
X_tr_poly = poly_features.fit_transform(X_tr)
X_te_poly  = poly_features.transform(X_te)
X_plot_poly = poly_features.transform(X_plot)

models_reg = {
    'Linear (tanpa regulasi)': LinearRegression(),
    'Ridge (L2, lambda=1)' : Ridge(alpha=1.0),
    'Lasso (L1, lambda=1)' : Lasso(alpha=1.0, max_iter=10000),
}

colors_reg = ['tomato', 'steelblue', 'mediumseagreen']
fig, ax = plt.subplots(figsize=(12, 6))
ax.scatter(X_tr, y_tr, color='lightgray', s=30, alpha=0.6, label='Data latih', zorder=1)
ax.scatter(X_te, y_te, color='black', s=50, marker='D', alpha=0.8, label='Data uji', zorder=2)

for (name, model), color in zip(models_reg.items(), colors_reg):
    model.fit(X_tr_poly, y_tr)
    y_pred = model.predict(X_te_poly)
    rmse = np.sqrt(mean_squared_error(y_te, y_pred))
    y_line = model.predict(X_plot_poly)
    ax.plot(X_plot, y_line, linewidth=2.5, color=color, label=f'{name} (RMSE={rmse:.1f})')

ax.set_ylim(100, 900)
ax.set_xlabel('Luas Bangunan (m2)')
ax.set_ylabel('Harga (juta rupiah)')
ax.set_title('Perbandingan: Linear vs Ridge vs Lasso (Polynomial Derajat 5)', fontweight='bold')
ax.legend(fontsize=9)
ax.spines[['top', 'right']].set_visible(False)
plt.tight_layout()
plt.show()
